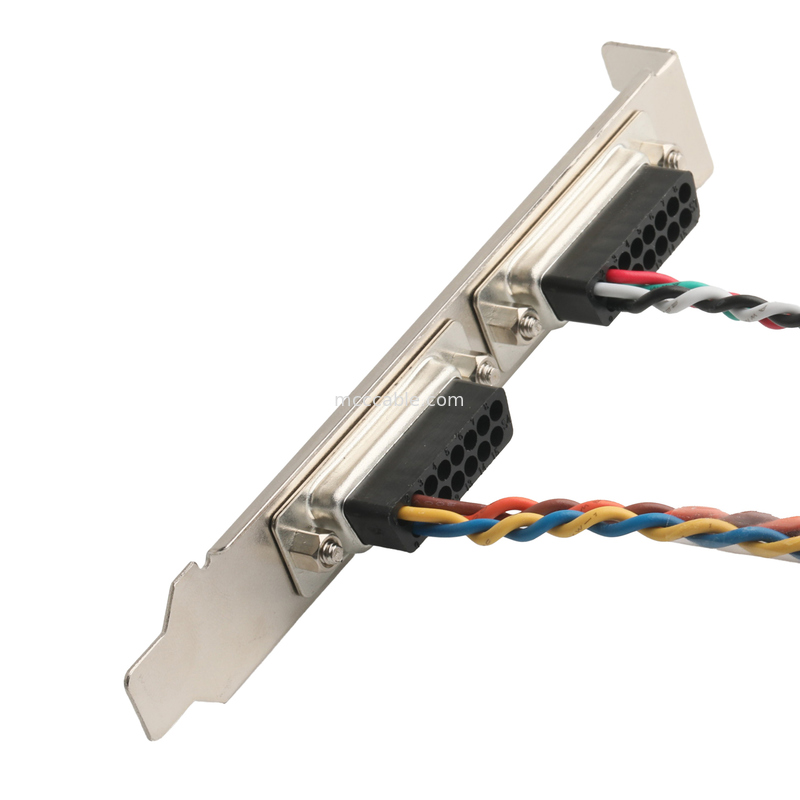

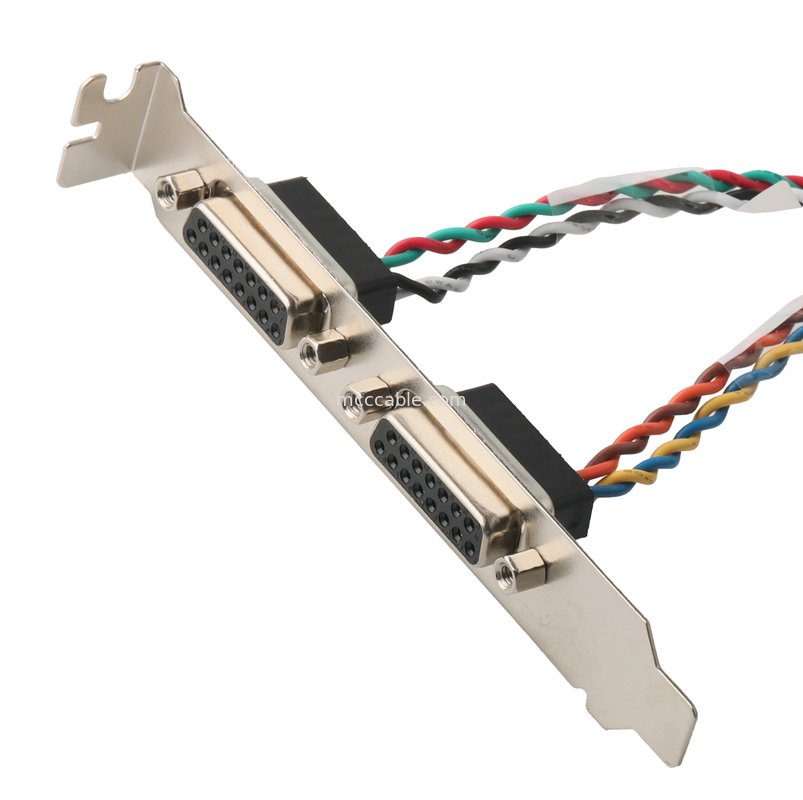

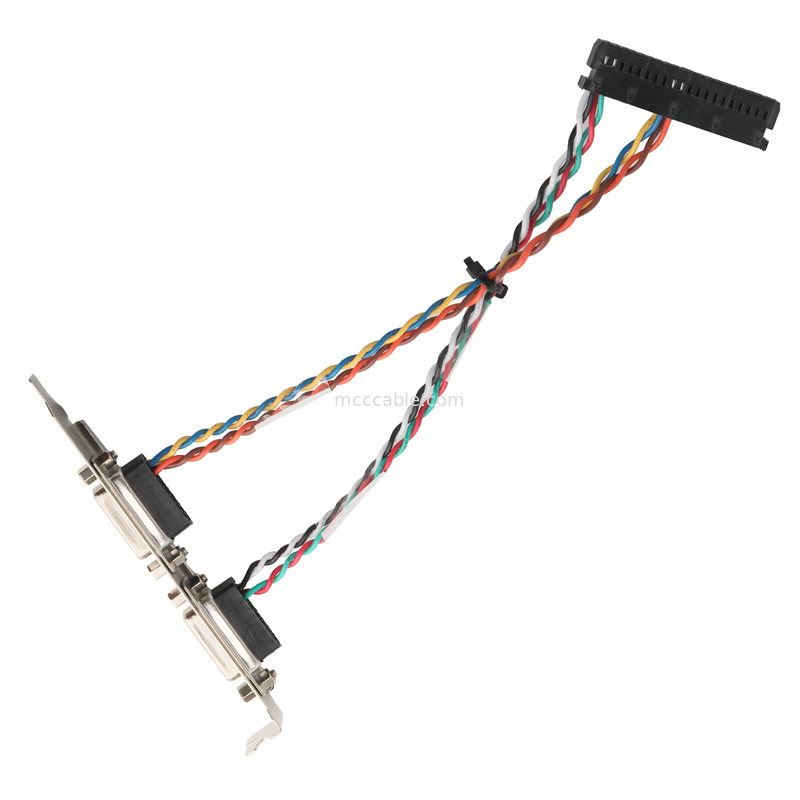

Cablaggio breakout da 40 pin a doppio DB15
40-Pin to Dual DB15 Breakout Harness
- UL1007 22AWG 300V Shielded Cable
40-Pin to Dual DB15 Breakout Harness :
| Parameter | Specification |

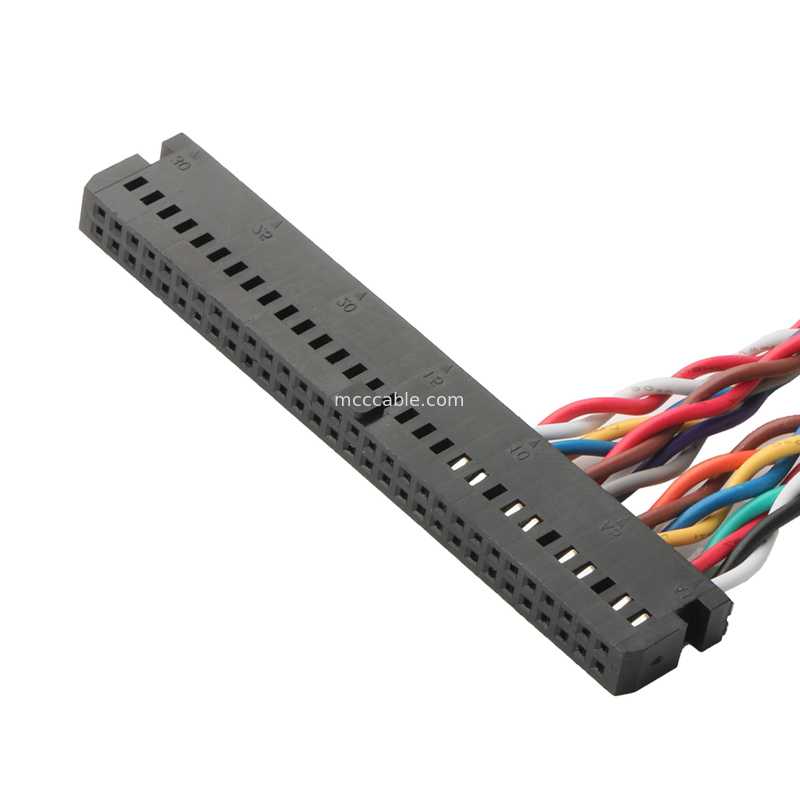

| Connector A | 40-Pin Dual Row Header (Vertical Mount) |
| Connector B/C | Dual DB15 Female Ports (Metal Shell) |
| Wire Specification | UL1007/1569 22AWG (300V) |
| Contact Resistance | ≤5Ω Max |
| Insulation Resistance | ≥20MΩ @300V DC |
| Voltage Rating | 300V AC/DC |
| Current Rating | 7A Max |
| Shielding | Foil + Braid (Belden 9921 or Equivalent) |
| Operating Temp | -40°C to +80°C |
| Crimp Terminals | 26-22AWG Socket Contacts |
| Testing | 100% Continuity/Short/Open Test |
| Compliance | RoHS 3, UL Listed |
40-Pin to Dual DB15 Breakout Harness :
Robust Camera Breakout Harness for Industrial I/O Systems
This 40-pin to dual DB15 shielded harness ensures reliable signal transmission for
industrial camera triggers and encoders. Built with UL1007-certified 22AWG wires,
it withstands EMI interference while maintaining flexibility in tight spaces.
Key Advantages:
Precision Connectors: 40-pin header and dual DB15 ports provide secure mating for
AXION2xB camera systems.
EMI Protection: Foil-braid shielding minimizes signal noise (tested to ≤5Ω contact resistance).
Custom Pinout: Pre-wired for VFG0/VFG1 trigger/encoder signals (color-coded per drawing).
Rigorous Compliance: Validated for RoHS 3 and UL standards with full documentation.
Ideal For:
Machine vision systems
Industrial automation controls
Robotics camera interfaces
As Your Custom Harness Partner, We Offer:
BOM Flexibility: Approved substitutes for connectors/crimps per EmbedTek SCNs.
Labeling Options: Custom wraparound labels with PN/PO#/Rev tracking.
Fast Prototyping: Samples with pinout verification in 5-7 days.
Sino-Media is a specialized cable assembly manufacturer. We utilize cutting-edge
automation equipment, premium raw materials, a robust quality assurance system,
and a skilled technical team to deliver high-quality, custom cable and harness
components in small quantities. Our engineering, production, and quality control
teams ensure the excellence of these unique components. Our mission is to enhance
product quality continuously, meet customer needs, and maintain expertise in the
materials we use and recommend. Our dedication to customer satisfaction drives
the company’s ongoing growth.
