Luogo di origine:
Cina
Marca:
Customization
Certificazione:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Numero di modello:
Creazione di filo da 31 pin a 30 pin

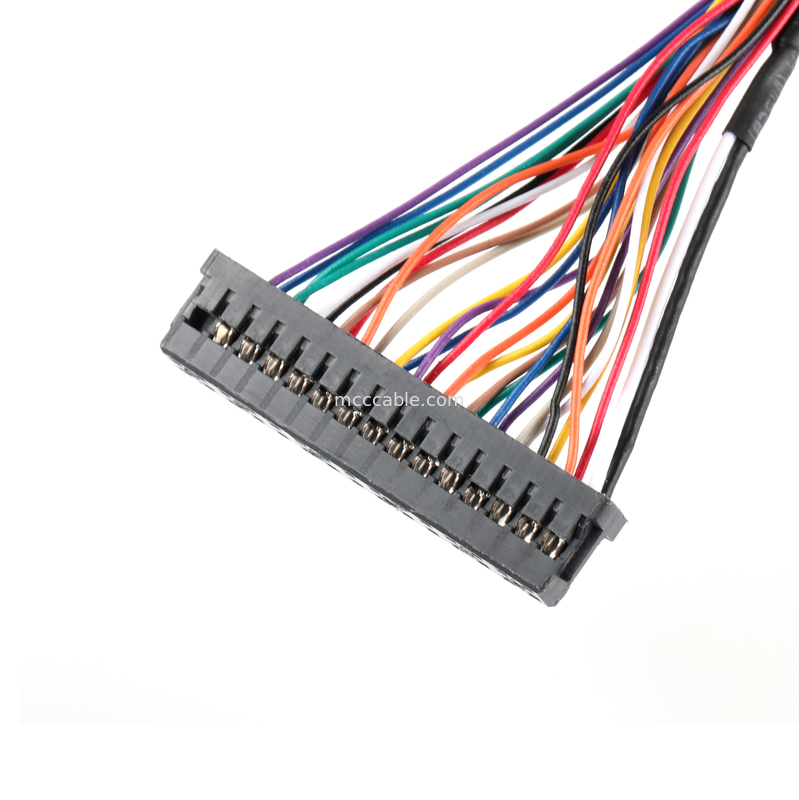

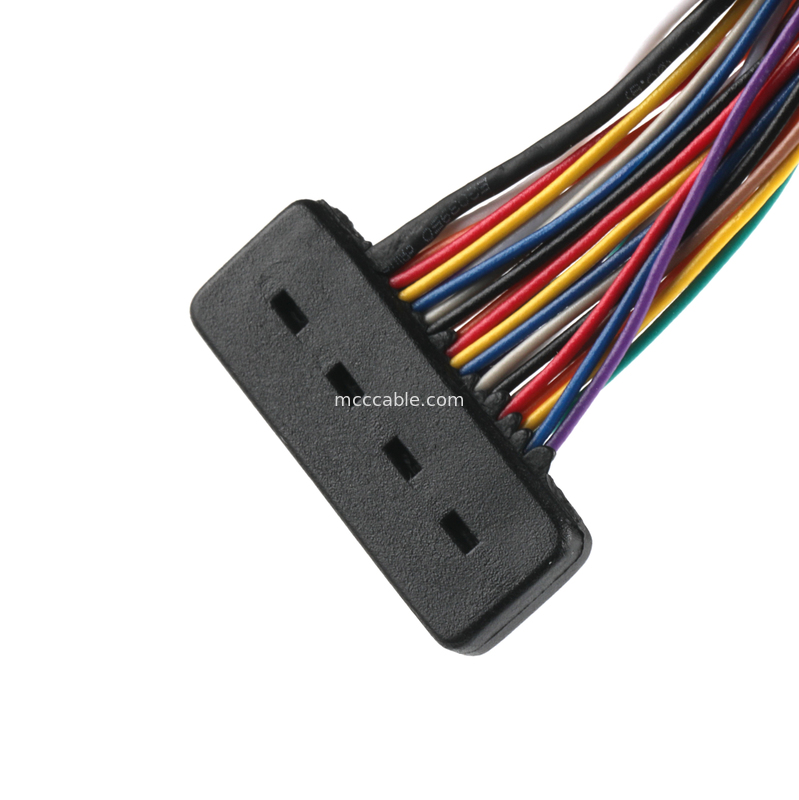

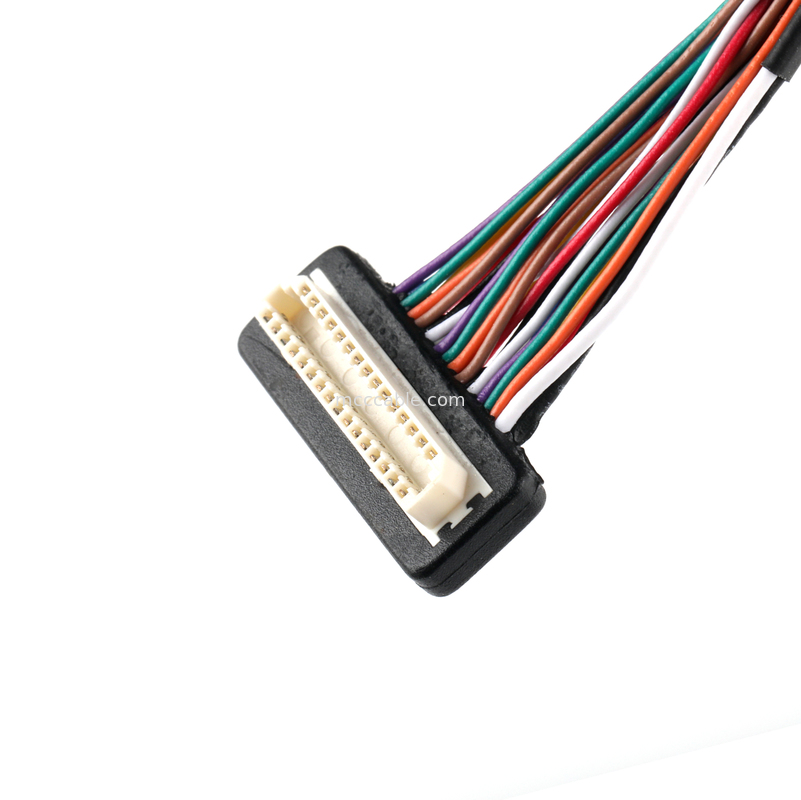

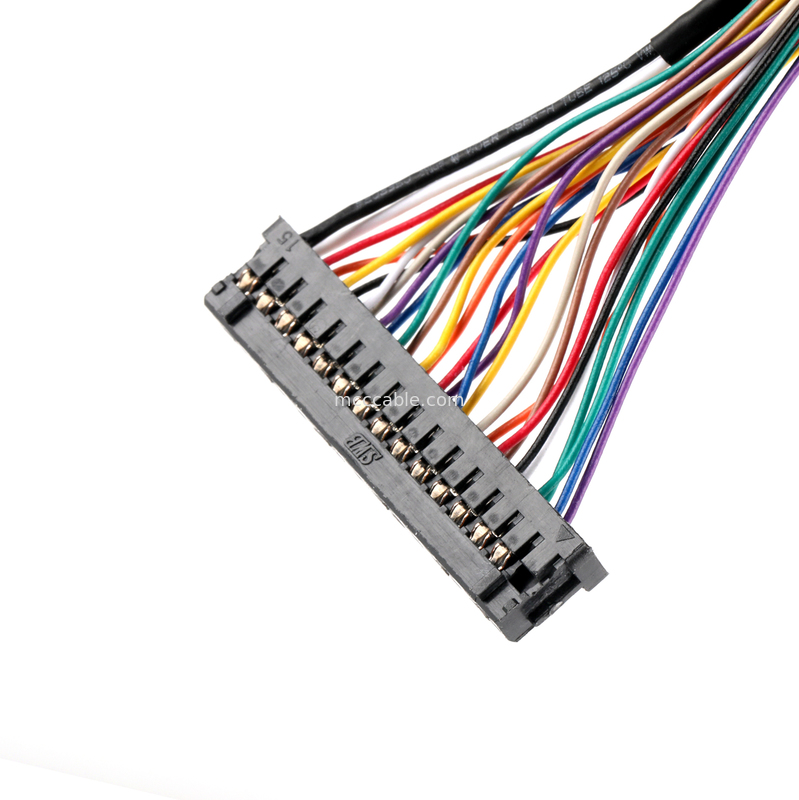

31-Pin to 30-Pin Wire Harness, UL1571/UL1533
Shielded Cable Assembly
31-Pin to 30-Pin Wire Harness:
| Parameter | Value |
| Connector A | DF9 Series, 31-pin, vertical SMT |
| Connector B | DF11 Series, 30-pin, dual-row |
| Voltage Rating | 300V AC/DC |
| Current Rating | 1A per contact |
| Temperature Range | -20°C to +85°C |
| Insulation Resistance | ≥100MΩ (at 500VDC) |
| Wire Gauge | 28AWG (0.6mm² / 1.8mm OD) |
| Shielding | Foil + drain wire |
| Compliance | UL1571, UL1533 |
Advantages of 31-Pin to 30-Pin Wire Harness:
This 31-pin to 30-pin wire harness combines high-density DF9/DF11
connectors with UL1571/UL1533 shielded cables for reliable signal
transmission in tight spaces. Engineered for industrial applications,
it features a 28AWG shielded core (white) with a dedicated GND wire
(black), rated for 300V/1A and -20°C to +85°C. The PVC jacket ensures
flame resistance (UL-certified), while precision crimping guarantees
stable connectivity. Fully customizable to meet OEM specifications,
including shielding and length adjustments.
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a
nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and
offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.
