Place of Origin:
China
Marca:
Customization
Certificazione:
UL ，ISO13485 , ISO9001.2005 , ISO14001
Model Number:
40-Pin Micro-Coaxial Cable

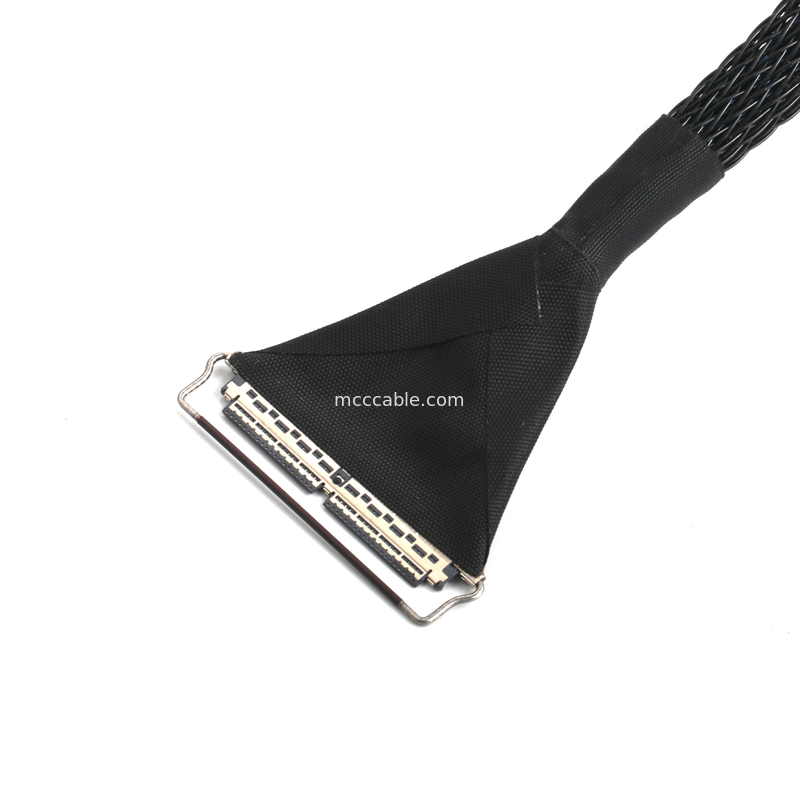

40-Pin Micro-Coaxial Cable, 0.4mm Pitch
40-Pin Micro-Coaxial Cable:
| Parameter | Specification |
| Connector Type | 40-pin micro-coaxial, 0.4mm pitch (both ends) |
| Wire Gauge | UL1354 40AWG shielded micro-coaxial |
| Shielding | Dual-layer (nylon braid + acetate tape) |
| Data Rate | Up to 5.4Gbps (EDP 1.4/LVDS compliant) |
| Voltage | Low-voltage differential signaling (0.8–1.2V) |
| Polarization | Keyed connectors for foolproof mating |
| Plating | Gold/nickel contacts (customizable) |
| Applications | 4K displays, aerospace HMI, medical imaging |
| Compliance | RoHS, EMI tested |
Precision-Engineered for Demanding Display Applications
Key Advantages:
Ultra-HD Signal Integrity: Supports 4K/60Hz displays via EDP protocol
with minimal crosstalk.
Robust EMI Protection: Nylon braid + foil shielding ensures reliable
performance in high-noise environments.
Industrial-Grade Durability: Withstands vibrations, flexing, and
temperatures from -40°C to +105°C.
Customization Options:
Connector plating (gold/nickel)
Variable lengths
Shielding enhancements (e.g., double-braid)
Ideal for:
Medical monitors (surgical displays, ultrasound)
Automotive infotainment systems
Industrial control panels
